The UV-1900i is a double-beam UV-Vis Spectrophotometer using Shimadzu's original LO-RAY-LIGH™ diffraction grating technology.
The compact UV-2600i/2700i is a universal, research-grade spectrophotometer that can be used in a wide range of fields, and easily expanded to suit the measurement objective.
UV-3600i Plus, the Multi-purpose large-sample compartment and the Integrating sphere attachment also feature three detector, enabling the high-sensitivity measurement of solid samples.
The SolidSpec-3700i/3700i DUV have three detectors which cover the range from ultraviolet to near-infrared.

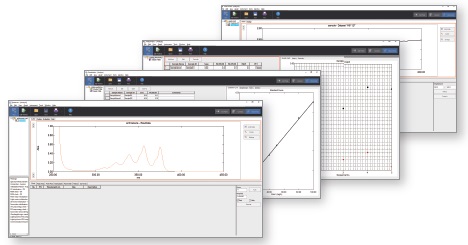

Software LabSolutions™ UV-Vis
Four Measurement Modes
Four separate measurement modes: spectral, quantitative, photometric, and time-course (automatic measurement is optional) enable measurements to be performed using intuitive operations.

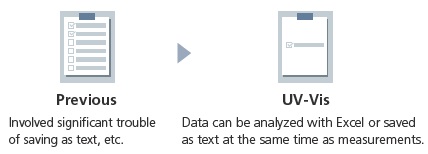

During measurements, this function transfers spectral and time-course data to Excel software in real time (requires separate Microsoft Excel software). That enables data analysis without the trouble of having to first save the data as a text file.

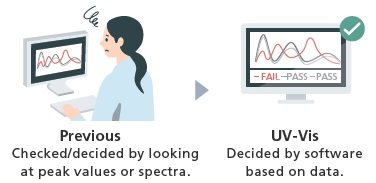

If spectra satisfy all evaluation criteria in accordance with the customized evaluation method, then an overall pass/fail result of "Pass" is output. Multiple evaluation criteria can be configured.
LabSolutions CS/DB UV-Vis provides compliance for regulations concerning electronic record keeping and electronic signatures required by FDA 21 CFR Part 11 and other regulations stipulated by Japan's Ministry of Health, Labour and Welfare (ER/ES regulations). Additionally, since the software supports laboratory networking, analytical results from a broad variety of analytical instruments used in the laboratory, including LC, LCMS, GC, GCMS, ICPMS, FTIR, RF, EDX, TOC, and PPSQ, can be managed centrally from a server.
*1 The acquisition control PC controls analytical instruments.
It can also be used to send analytical instructions and perform postrun analysis, just like a client PC.
*2 If a terminal service is used, then LabSolutions software does not need to be installed on client PCs.
*3 If an iPad is used, then XenApp from Citrix must be installed.
Automatic control functionality is used by LabSolutions UV-Vis to successively perform operations automatically in order of the assigned commands, without an operator having to click buttons or enter characters in software windows with a mouse or keyboard. Using this functionality enables automated system analysis, permits execution of specific operations, such as start/stop operations that do not require an operator performing the operations in a window, and can achieve a system that prevents human errors.
Commands are text files that can be used to configure specialized systems. By placing simple text files that contain a list of commands in a folder, LabSolutions UV-Vis automatically reads the commands contained in the file, loads the parameter settings file, performs baseline corrections, measures the spectrum, or performs other processes automatically.

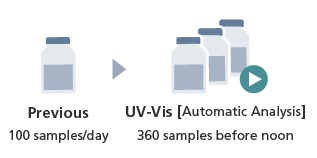

If used in combination with an ASX series autosampler for automatic analysis, up to 360 samples can be automatically analyzed continuously. Furthermore, the spectral evaluation function can be used to navigate the entire process from measurement to data analysis.
