Autosampler Tubes & Cups

For Flame Continuous Method

P/N Description Applicable Model
046-00147-04 Test tube,
15 mL, φ 16 x 100
ASC-7000
ASC-6100
200-93113-05 Glass sample cup,
53 mL, φ 30 x 90
046-00150-27 Glass test tube,
12 mL
ASC-7000

For Furnace and Flame Micro Sampling Methods

P/N Description Applicable Model
038-00259-02 Sample tube,
2 mL, φ 14 x 23.6
ASC-7000
ASC-6100
038-00259-03 Sample tube,
2 mL, φ 14 x 23.6, 50 pcs
038-00155-03 Sample cup,
20 mL, φ 28 x 48.5
200-93036 200-93036 Glass sample cup,
2 mL
ASC-7000

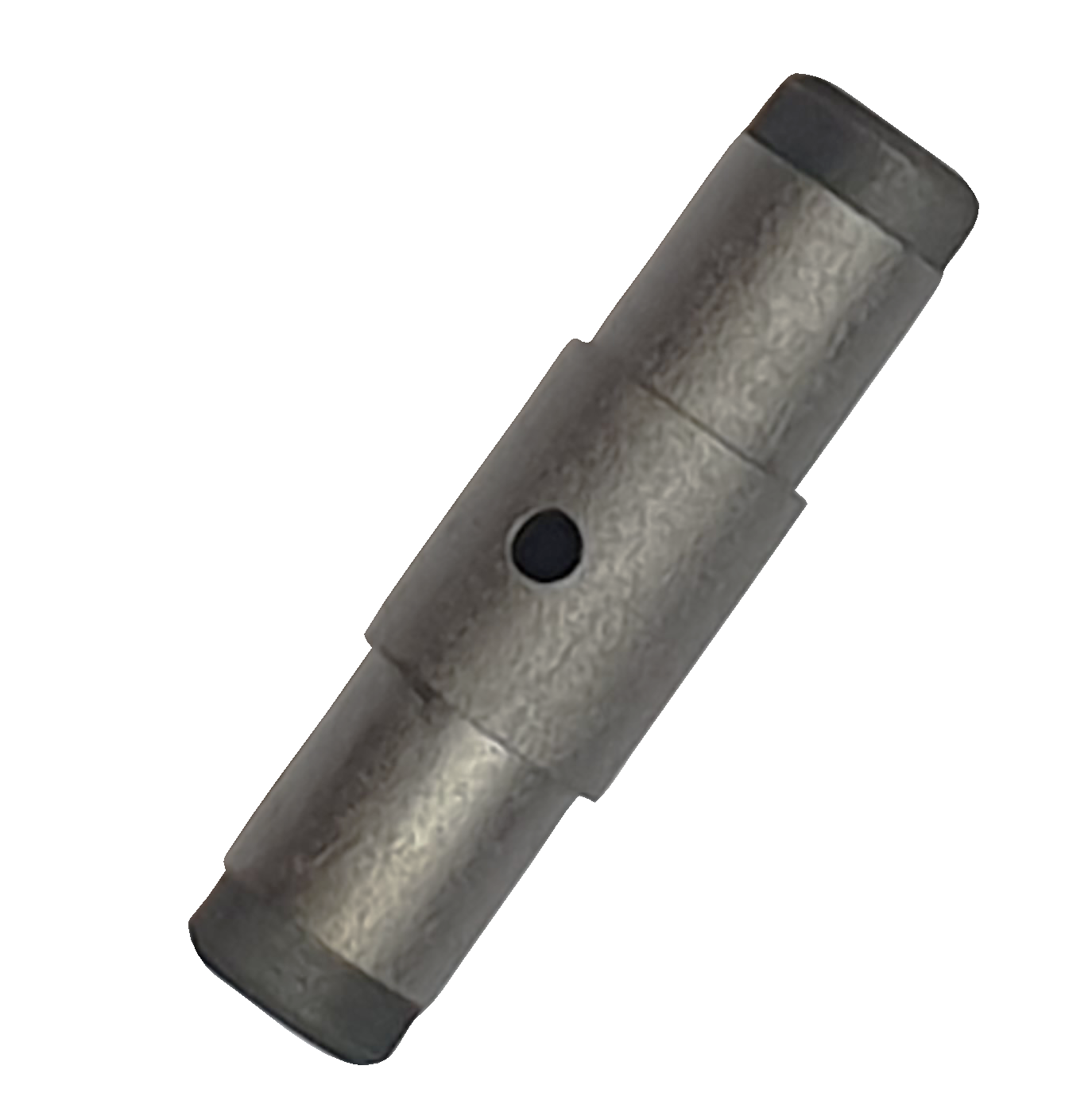

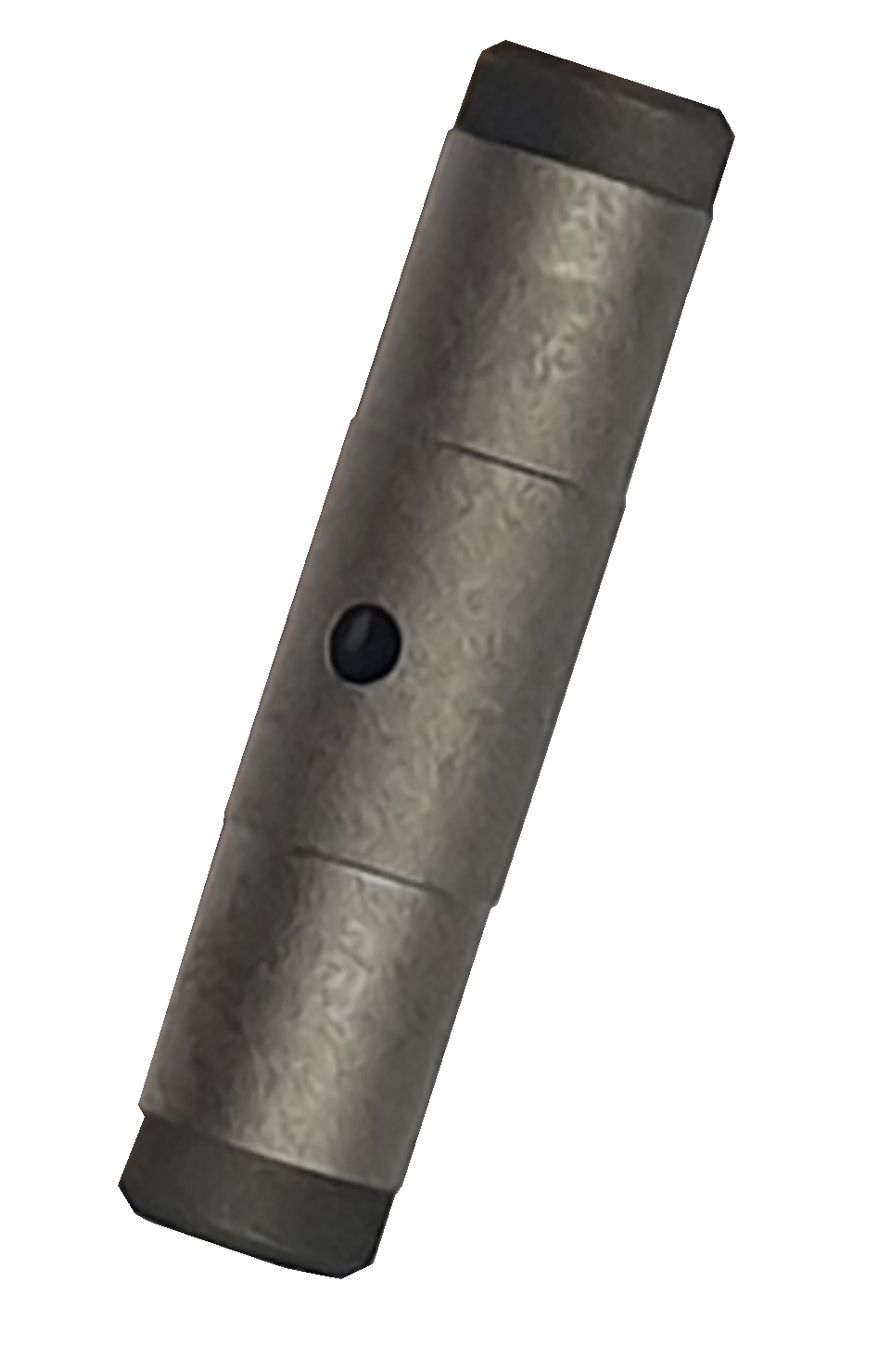

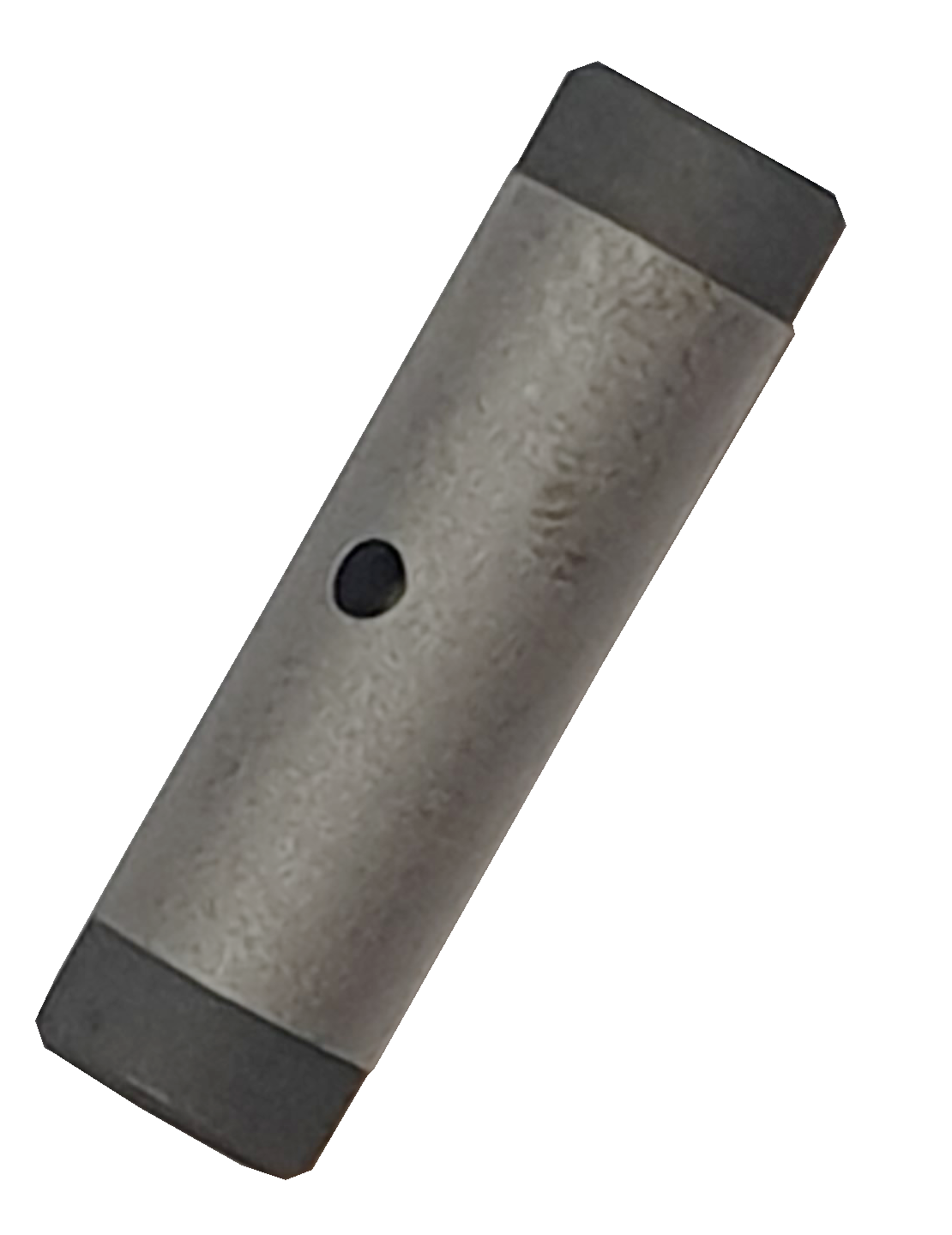

GFA Graphite Tubes

In graphite furnace technology, it is important to select the graphite tube according to the target element and sample composition. Actually there is a wide variety of different graphite tubes used in electrothermal atomization. Shimadzu´s atomic absorption spectrometers can be operated with different tube types: high density graphite tube, pyrolytic coating graphite tube, a “fork”- platform graphite tube and last not least the omega platform tube.





Hollow Cathode Lamps / High-Performance type

High-Performance Boosted Hollow Cathode Lamp designed for AA-6880

The AA-6880 lamp house has an 8 lamp turret with an automatic switching function, where the No. 7 and No. 8 lamp holders can be used for both an ordinary hollow cathode lamp and a high-performance boosted hollow cathode lamp. The AA-6880 can simultaneously light any two hollow cathode lamps.
For the high-performance boosted hollow cathode lamp, an auxiliary cathode electrode is added based on two ordinary hollow cathode lamps. The atoms will be produced under the sputtering action in the hollow cathode due to discharging between the hollow cathode and the anode. The low-voltage high current between the anode and the auxiliary cathode provides excitation energy for the atoms, and such sputtering action and excitation action will be respectively controlled by two separate discharge processes. This greatly improves the excitation efficiency of the atomic spectrum. The high-performance hollow cathode lamp requires a dedicated power supply.
The AA-6880 main unit has a built-in high-performance boosted hollow cathode lamp power supply. Two high-performance hollow cathode lamps can be simultaneously illuminated without any external power supply.
An auxiliary cathode current can be automatically scanned, which only requires optimizing the test conditions.

Main Features of High-Performance Boosted Hollow Cathode Lamps

(Compared with Ordinary Lamps)

  • High emission intensity and good stability
  • High measurement sensitivity and low detection limit
  • Expanded calibration curve linear range
  • Reduced spectrum interference from adjacent lines, so a larger spectral bandwidth can be used to further improve the energy. In general, the electrodes of the high-performance boosted hollow cathode lamp, made by low-melting-point and volatile elements,such as As, Bi, Pb, Sb, Se, Zn, etc., show better application results.




  1. Comparison table for typical detection limits of the high-performance type and ordinary type hollow cathode lamp
Element Air-Acetylene Flame Analysis Graphite Furnace Analysis
Detection Limit (µg/mL) Detection Limit (pg)
Ordinary type High-Performance type Ordinary type High-Performance type
Pb 0.0279 0.0149 0.68 (10 µL) 0.42 (10 µL)
Zn 0.0019 0.0010 0.055 (20 µL) 0.025 (20 µL)

Product Information

P/N Measured Element Element Symbol
208-94046-01 Aluminum AL
208-94046-02 Antimony SB
208-94046-03 Arsenic AS
208-94046-04 Beryllium BE
208-94046-05 Bismuth BI
208-94046-06 Boron B
208-94046-07 Cadmium CD
208-94046-08 Calcium CA
208-94046-09 Chromium CR
208-94046-10 Cobalt CO
208-94046-11 Copper CU
208-94046-12 Germanium GE
208-94046-13 Gold AU
208-94046-14 Iridium IR
208-94046-15 Iron FE
208-94046-16 Lead PB
208-94046-17 Lutetium LU
208-94046-18 Magnesium MG
208-94046-19 Manganese MN
208-94046-20 Molybdenum MO
208-94046-21 Nickel NI
208-94046-22 Palladium PD
208-94046-23 Platinum PT
208-94046-24 Rhodium RH
208-94046-25 Ruthenium RU
208-94046-26 Selenium SE
208-94046-27 Silicon SI
208-94046-28 Silver AG
208-94046-29 Tantalum TA
208-94046-30 Tellurium TE
208-94046-31 Tin SN
208-94046-32 Titanium TI
208-94046-33 Tungsten W
208-94046-34 Vanadium V
208-94046-35 Zinc ZN
208-94046-36 Zirconium ZR
Hollow Cathode Lamps / Ordinary type

Single-Element

P/N Description Measured Element
200-38422-02 Hollow cathode lamp, L233-47NU Ag
200-38422-01 Hollow cathode lamp, L233-13NU Al
200-38422-42 Hollow cathode lamp, L233-33NQ As
200-38422-25 Hollow cathode lamp, L233-79NQ Au
200-38422-39 Hollow cathode lamp, L233-5NQ B
200-38422-03 Hollow cathode lamp, L233-56NB Ba
200-38422-04 Hollow cathode lamp, L233-4NQ Be
200-38422-43 Hollow cathode lamp, L233-83NQ Bi
200-38422-05 Hollow cathode lamp, L233-20NU Ca
200-38422-06 Hollow cathode lamp, L233-48NQ Cd
200-38422-09 Hollow cathode lamp, L233-27NQ Co
200-38422-07 Hollow cathode lamp, L233-24NU Cr
200-38422-27 Hollow cathode lamp, L233-55NB Cs
200-38422-08 Hollow cathode lamp, L233-29NU Cu
200-38422-60 Hollow cathode lamp, L233-66NB Dy
200-38422-61 Hollow cathode lamp, L233-68NB Er
200-38422-62 Hollow cathode lamp, L233-63NB Eu
200-38422-10 Hollow cathode lamp, L233-26NQ Fe
200-38422-40 Hollow cathode lamp, L233-31NU Ga
200-38422-63 Hollow cathode lamp, L233-64NB Gd
200-38422-11 Hollow cathode lamp, L233-32NU Ge
200-38422-64 Hollow cathode lamp, L233-72NU Hf
200-38422-28 Hollow cathode lamp, L233-80NQ Hg
200-38422-65 Hollow cathode lamp, L233-67NB Ho
200-38422-48 Hollow cathode lamp, L233-49NB In
200-38422-66 Hollow cathode lamp, L233-77NQ Ir
200-38422-22 Hollow cathode lamp, L233-19NB K
200-38422-29 Hollow cathode lamp, L233-57NU La
200-38422-30 Hollow cathode lamp, L233-3NB Li
200-38422-67 Hollow cathode lamp, L233-71NB Lu
200-38422-12 Hollow cathode lamp, L233-12NU Mg
200-38422-13 Hollow cathode lamp, L233-25NU Mn
200-38422-31 Hollow cathode lamp, L233-42NU Mo
200-38422-14 Hollow cathode lamp, L233-11NB Na
200-38422-32 Hollow cathode lamp, L233-41NU Nb
200-38422-68 Hollow cathode lamp, L233-60NB Nd
200-38422-15 Hollow cathode lamp, L233-28NQ Ni
200-38422-69 Hollow cathode lamp, L233-76NU Os
200-38422-21 Hollow cathode lamp, L233-82NQ Pb
200-38422-41 Hollow cathode lamp, L233-46NQ Pd
200-38422-70 Hollow cathode lamp, L233-59NB Pr
200-38422-20 Hollow cathode lamp, L233-78NU Pt
200-38422-33 Hollow cathode lamp, L233-37NB Rb
200-38422-44 Hollow cathode lamp, L233-75NU Re
200-38422-49 Hollow cathode lamp, L233-45NB Rh
200-38422-45 Hollow cathode lamp, L233-44NU Ru
200-38422-24 Hollow cathode lamp, L233-51NQ Sb
200-38422-71 Hollow cathode lamp, L233-21NB Sc
200-38422-46 Hollow cathode lamp, L233-34NQ Se
200-38422-16 Hollow cathode lamp, L233-14NU Si
200-38422-72 Hollow cathode lamp, L233-62NB Sm
200-38422-18 Hollow cathode lamp, L233-50NQ Sn
200-38422-34 Hollow cathode lamp, L233-38NU Sr
200-38422-35 Hollow cathode lamp, L233-73NU Ta
200-38422-73 Hollow cathode lamp, L233-65NB Tb
200-38422-47 Hollow cathode lamp, L233-52NQ Te
200-38422-17 Hollow cathode lamp, L233-22NU Ti
200-38422-74 Hollow cathode lamp, L233-81NU Tl
200-38422-75 Hollow cathode lamp, L233-69NB Tm
200-38422-19 Hollow cathode lamp, L233-23NU V
200-38422-36 Hollow cathode lamp, L233-74NU W
200-38422-76 Hollow cathode lamp, L233-39NB Y
200-38422-77 Hollow cathode lamp, L233-70NB Yb
200-38422-23 Hollow cathode lamp, L233-30NQ Zn
200-38422-37 Hollow cathode lamp, L233-40NU Zr

Single-Element, for Self-Reversal Method

P/N Description Measured Element
200-38456-01 Hollow cathode lamp, L2433-47NB Ag
200-38456-02 Hollow cathode lamp, L2433-13NB Al
200-38456-03 Hollow cathode lamp, L2433-33NQ As
200-38456-04 Hollow cathode lamp, L2433-79NQ Au
200-38456-05 Hollow cathode lamp, L2433-5NQ B
200-38456-06 Hollow cathode lamp, L2433-56NB Ba
200-38456-07 Hollow cathode lamp, L2433-4NQ Be
200-38456-08 Hollow cathode lamp, L2433-83NQ Bi
200-38456-09 Hollow cathode lamp, L2433-20NU Ca
200-38456-10 Hollow cathode lamp, L2433-48NQ Cd
200-38456-11 Hollow cathode lamp, L2433-27NU Co
200-38456-12 Hollow cathode lamp, L2433-24NB Cr
200-38456-14 Hollow cathode lamp, L2433-29NB Cu
200-38456-15 Hollow cathode lamp, L2433-66NB Dy
200-38456-16 Hollow cathode lamp, L2433-68NB Er
200-38456-17 Hollow cathode lamp, L2433-63NB Eu
200-38456-18 Hollow cathode lamp, L2433-26NQ Fe
200-38456-19 Hollow cathode lamp, L2433-31NU Ga
200-38456-21 Hollow cathode lamp, L2433-32NU Ge
200-38456-22 Hollow cathode lamp, L2433-72NU Hf
200-38456-24 Hollow cathode lamp, L2433-67NB Ho
200-38456-26 Hollow cathode lamp, L2433-19NB K
200-38456-27 Hollow cathode lamp, L2433-57NB La
200-38456-28 Hollow cathode lamp, L2433-3NB Li
200-38456-30 Hollow cathode lamp, L2433-12NU Mg
200-38456-31 Hollow cathode lamp, L2433-25NU Mn
200-38456-32 Hollow cathode lamp, L2433-42NB Mo
200-38456-33 Hollow cathode lamp, L2433-11NB Na
200-38456-35 Hollow cathode lamp, L2433-28NQ Ni
200-38456-37 Hollow cathode lamp, L2433-82NQ Pb
200-38456-38 Hollow cathode lamp, L2433-46NQ Pd
200-38456-40 Hollow cathode lamp, L2433-78NU Pt
200-38456-43 Hollow cathode lamp, L2433-44NB Ru
200-38456-44 Hollow cathode lamp, L2433-51NQ Sb
200-38456-46 Hollow cathode lamp, L2433-34NQ Se
200-38456-47 Hollow cathode lamp, L2433-14NQ Si
200-38456-48 Hollow cathode lamp, L2433-62NB Sm
200-38456-49 Hollow cathode lamp, L2433-50NQ Sn
200-38456-50 Hollow cathode lamp, L2433-38NB Sr
200-38456-53 Hollow cathode lamp, L2433-52NQ Te
200-38456-54 Hollow cathode lamp, L2433-22NB Ti
200-38456-56 Hollow cathode lamp, L2433-23NB V
200-38456-58 Hollow cathode lamp, L2433-39NB Y
200-38456-59 Hollow cathode lamp, L2433-70NB Yb
200-38456-60 Hollow cathode lamp, L2433-30NQ Zn

Multi-Element

P/N Description Measured Element
200-38422-50 Hollow cathode lamp, L733-201NB Na, K
200-38422-51 Hollow cathode lamp, L733-202NU Ca, Mg
200-38422-52 Hollow cathode lamp, L733-203NU Si, Al
200-38422-53 Hollow cathode lamp, L733-204NQ Fe, Ni
200-38422-54 Hollow cathode lamp, L733-205NU Sr, Ba
