MarvelXACT UHPLC Tubing
Effortless precision. Maximum performance.
Say goodbye to leaks, dead volumes and time-consuming connections. The MarvelXACT UHPLC connection system was developed to meet the challenges of ultra-high performance liquid chromatography. With this innovative system, you can achieve reproducible results and unrivalled efficiency in your laboratory.
The MarvelXACT connection system: precision and reliability for liquid chromatography
- The MarvelXACT system is designed to provide reliable
and repeatable face sealing on 10-32 tapered ports. An
integrated, patented torque limiting mechanism protects
against over- or under-tightening. Once the optimum
torque is reached, the mechanism provides tactile feedback
(audible/palpable „click“), ensuring correct installation
without tools. - The integrated MarvelX sealing technology minimises internal
dead volume, reducing the risk of carryover, peak
tailing and peak widening. The system is made of highly
resistant, bio-inert PEEK and stainless steel and enables
over 100 reliable connection cycles. The fl exible 1/32“ OD
capillary facilitates routing in the system. In addition, the
patented technology automatically adapts to different
port depths.
Your advantages at a glance:
- No tools. No guesswork
The revolutionary torque-limiting mechanism ensures a perfectly tightened connection - every time. A clearly perceptible „click“ signals that the optimum pressure point has been reached. - 100+ reuses guaranteed
The robust connections are designed for over 100 reliable connections without sacrifi cing performance. This saves time and money. - Perfect results at the highest pressures
MarvelXACT hoses can withstand pressures of up to 1,300 bar (19,000 psi) and minimise dead volume. The result: sharp peaks and improved resolution - Identification sleeve with length and ID
The tubes are available in a three materials (PEEK-lined stainless steel, PEEKsil™, pure stainless steel) and inner diameters to meet the specifi c requirements of your analysis - also for bioinert applications

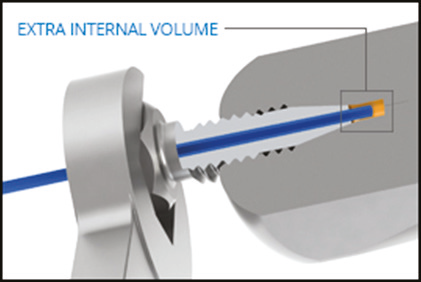

Conventional Fitting
Conventional conical fi ttings require a ferrule in combination with the fi tting itself for proper sealing. They rely on complex techniques and specialised tooling for improved sealing performance. This signifi cantly increases the
likelihood of additional internal volume and poor chromatography results. The high tightening pressure required for assembly accelerates wear on costly components and leads to more frequent replacement requirements, significantly increasing overall costs.

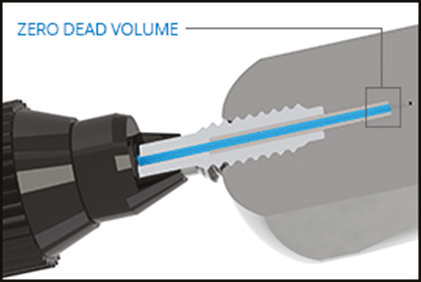

MarvelXACT Fitting
Unlike conventional systems, MarvelXACT fittings do not require a ferrule. Sealing takes place directly at the lower end of the port, which considerably simplifies the assembly process. This not only reduces the required torque,

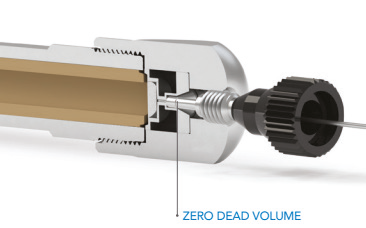

but also significantly increases the number of possible connection and disconnection cycles. MarvelXACT fittings reduce hardware wear and thus extend product life. A further developed, protected tip design also guarantees zero dead volume (ZDV) and optimises chromatography.
Ordering Information
| Inner Diameter (μm) |
Length (mm) |
Volume (μl) | Stainless Steel |
PEEK-Lined Stainless |
PEEKsil |
|---|---|---|---|---|---|
| 25 | 150 | 0.075 | - | 980-35048 | 980-35068 |
| 25 | 250 | 0.123 | - | 980-35049 | - |
| 25 | 350 | 0.172 | - | 980-35050 | 980-35069 |
| 25 | 500 | 0.245 | - | 980-35051 | - |
| 25 | 600 | 0.295 | - | 980-35052 | 980-35070 |
| 50 | 150 | 0.295 | - | 980-35053 | 980-35071 |
| 50 | 250 | 0.491 | - | 980-35054 | - |
| 50 | 350 | 0.687 | - | 980-35055 | 980-35072 |
| 50 | 500 | 0.982 | - | 980-35056 | - |
| 50 | 600 | 1.178 | - | 980-35057 | 380-35073 |
| 75 | 150 | 0.663 | - | 980-35058 | 980-35074 |
| 75 | 250 | 1.104 | - | 980-35059 | - |
| 75 | 350 | 1.546 | - | 980-35060 | 980-35075 |
| 75 | 500 | 2.209 | - | 980-35061 | - |
| 75 | 600 | 2.651 | - | 980-35062 | 980-35076 |
| 100 | 100 | 0.785 | 980-35032 | - | - |
| 100 | 150 | 1.178 | 980-35033 | 980-35063 | 980-35077 |
| 100 | 250 | 1.963 | 980-35034 | 980-35064 | - |
| 100 | 350 | 2.749 | 980-35035 | 980-35065 | 980-35078 |
| 100 | 500 | 3.927 | 980-35036 | 980-35066 | - |
| 100 | 600 | 4.712 | 980-35037 | 980-35067 | 980-35079 |
| 125 | 150 | 1.841 | 980-35038 | - | - |
| 125 | 250 | 3.068 | 980-35039 | - | - |
| 125 | 350 | 4.295 | 980-35040 | - | - |
| 125 | 500 | 6.136 | 980-35041 | - | - |
| 125 | 600 | 7.363 | 980-35042 | - | - |
| 254 | 150 | 7.6 | 980-35043 | - | - |
| 254 | 250 | 12.667 | 980-35044 | - | - |
| 254 | 350 | 17.734 | 980-35045 | - | - |
| 254 | 500 | 25.335 | 980-35046 | - | - |
| 254 | 600 | 30.402 | 980-35047 | - | - |
