Syringe Filters

High-grade filter membrane material to ensure filtration effect

Add Bookmark

syringe Filter

Syringe Filter

  • The Classic range is available in all of the major membranes including Nylon, PTFE, PES, and PVDF, which are supplied in 13 mm, 25 mm formats in medical polypropylene housings.
  • High-grade filter membrane material to ensure filtration effect

Nylon

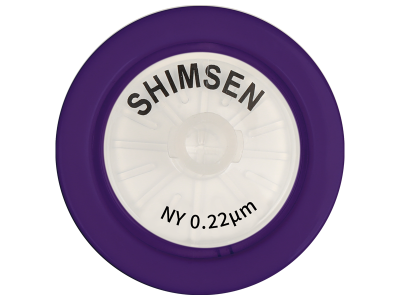

380-00323

The rather hydrophilic PA (polyamide / Nylon) membrane is for filtration of medium polar organic-aqueous liquids



P/N Membrane Outer Diameter Pore Size Content pcs/pack
380-00321 Nylon HPLC Syringe Filter 13 mm 0.22 µm 100
380-00322 Nylon HPLC Syringe Filter 13 mm 0.45 µm 100
380-00323 Nylon HPLC Syringe Filter 25 mm 0.22 µm 100
380-00324 Nylon HPLC Syringe Filter 25 mm 0.45 µm 100



PTFE Hydrophilic (H-PTFE)

380-00343

Hydrophilized polytetrafluoroethylene is used as membrane material. H-PTFE membrane is hydrophobic with additional hydrophilic characteristic . This product is very resistant towards all kinds of solvents as well as acids and bases. (PTFE/L imprint on filter)



P/N Membrane Outer Diameter Pore Size Content pcs/pack
380-00341 PTFE Hydrophilic HPLC Syringe Filter 13 mm 0.22 µm 100
380-00342 PTFE Hydrophilic HPLC Syringe Filter 13 mm 0.45 µm 100
380-00343 PTFE Hydrophilic HPLC Syringe Filter 25 mm 0.22 µm 100
380-00344 PTFE Hydrophilic HPLC Syringe Filter 25 mm 0.45 µm 100



PTFE Hydrophobic

380-00333

The hydrophobic PTFE membrane is very resistant towards all kinds of solvents as well as acids and bases. Flushing with alcohol, followed by water, makes the originally hydrophobic membrane more hydrophilic. (FTFE imprint on filter)



P/N Membrane Outer Diameter Pore Size Content pcs/pack
380-00331 PTFE Hydrophobic HPLC Syringe Filter 13 mm 0.22 µm 100
380-00332 PTFE Hydrophobic HPLC Syringe Filter 13 mm 0.45 µm 100
380-00333 PTFE Hydrophobic HPLC Syringe Filter 25 mm 0.22 µm 100
380-00334 PTFE Hydrophobic HPLC Syringe Filter 25 mm 0.45 µm 100



PES

380-001301

Inside the syringe filter polyethersulfone is used as membrane material. The hydrophilic PES membrane is suitable for aqueous and slightly organic liquids. This filter shows a good stability against acids and bases as well as a very low adsorption for pharmaceuticals and proteins.



P/N Membrane Outer Diameter Pore Size Content pcs/pack
380-00301 PES HPLC Syringe Filter 13 mm 0.22 µm 100
380-00302 PES HPLC Syringe Filter 13 mm 0.45 µm 100
380-00303 PES HPLC Syringe Filter 25 mm 0.22 µm 100
380-00304 PES HPLC Syringe Filter 25 mm 0.45 µm 100



MCE

380-00313

Cellulose mixed ester is used as membrane material. The hydrophilic MV membrane is suitable for aqueous or polar solutions



P/N Membrane Outer Diameter Pore Size Content pcs/pack
380-00311 MCE HPLC Syringe Filter 13 mm 0.22 µm 100
380-00312 MCE HPLC Syringe Filter 13 mm 0.45 µm 100
380-00313 MCE HPLC Syringe Filter 25 mm 0.22 µm 100
380-00314 MCE HPLC Syringe Filter 25 mm 0.45 µm 100
