Gas Chromatography Systems Comparison

This page provides a quick overview of 4 models of gas chromatography systems. Choose the model that best suits your analysis needs from the high-end Nexis GC-2030 for efficient routine analysis with its exceptional performance and high-throughput capabilities to the compact GC-2025 energy-saving capillary gas chromatograph with high value performance.

Summary of Product Features
Comparison Table
GC Components & Accessories Products

1. Summary of Product Features

Nexis GC-2030

Designed with the Analyst in Mind
The Nexis GC-2030 features Analytical Intelligence and enables all users to monitor the instrument status and set parameters with ease.

Best-in-class Sensitivity and Reproducibility
Nexis GC-2030 provides the best-in-class analysis accuracy. This makes the Nexis GC-2030 the best choice to measure residual solvents in pharmaceuticals.

Exceptional Extensibility and Productivity
The most optimized system can be selected depending on the purpose of analysis and target components. Four detectors can be controlled simultaneously using LabSolutions.

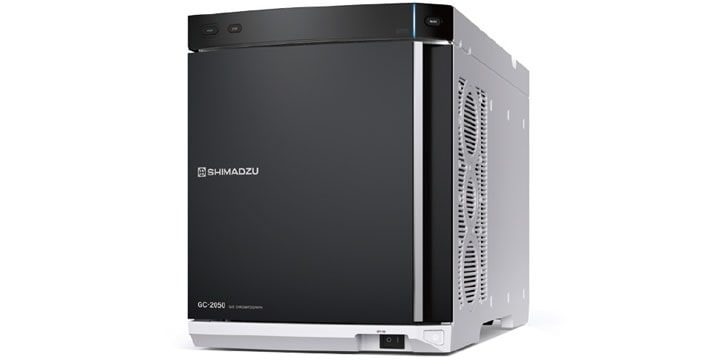

Brevis™ GC-2050

Compact without Compromise
Space-saving yet expandable design
Sufficient GC oven size
Compact and easy to maintain

Built-in Analytical Intelligence
Automatic remote operation
Automating the procedures of experienced analysts
Supply gas check

Best-in-Class Performance
Outstanding analytical reproducibility

GC-2010 Pro

Flexible Lineup for Various Analysis
Two analytical lines can be operated simultaneously for different applications.

Industry Leading Detector Sensitivity
All detectors of GC-2010 Pro realize high sensitivity in miniaturization design to meet the ever-increasing demands for trace level analysis.

Options Enhancing Scalability
Simultaneously install up to three injection units and up to three detectors to suit the needs of your analysis.

GC-2014

Superior Performance
Improved design and innovative technology for all of our injectors, detectors and flow controllers equal or surpass our GC-2010 the high-end technology leader.

Excellent User Interface
Large LCD, all digital gases control and auto-diagnostics inherited from the GC-2010 – “The Most advanced, easy-to-use interface”

Expandability to Support all Types of Analysis
Use any column types for any analysis. Packed or capillary columns give you the freedom to choose the best technique for your measurement. Fully integrated multiple valve systems are made simple for optimum performance for System GC custom GC products.

GC-2025

Eco-Friendly Model
A compact design and efficient insulating materials inside the oven minimize the heat capacity and heat loss, reducing electricity costs and realizing more environmentally friendly operation.

Compact, All-in-One Design
With a compact design, the GC-2025 minimizes space requirements while maintaining the necessary features for normal capillary analysis.

High Performance
The GC-2025 delivers superb performance for capillary analysis and provides high-quality analytical results as well as improved productivity.

2. Comparison Table

	Nexis GC-2030	Brevis GC-2050	GC-2010 Pro	GC-2014	GC-2025 (Discontinued)
Display	Full-color touch screen	Remote display (Windows app)	Monochrome LCD	Monochrome LCD	Monochrome LCD
Shimadzu AI			N/A	N/A	N/A
ClickTek*¹	(Inlet/column)	(Inlet/column)	(column only)	N/A	(column only)
Auto Injector/Sampler (Sample Capacity)	AOC-30/20 series (6/12/30/60/150)	AOC-30/20 series (6/12/30/60/150)	AOC-20 series (6/12/150)	AOC-20 series (6/12/150)	AOC-20 series (6/12/150)
Headspace Sampler/Thermal Desorption	/	*²/(N/A)	/	*²/(N/A)	*²/(N/A)
Dual Injection				N/A	N/A
Multi. Analytical Line					N/A
Flow Controller	3^rd generation electric controller	3^rd generation Electric controller	2^nd generation electric controller	2^nd generation electric controller*³	2^nd generation electric controller
Inlet(max)	Split/splitless, Direct, PTV, OCI, Packed (3)	Split/splitless (2)	Split/splitless, Direct, PTV/OCI (2)	Split/splitless, Direct, Packed, Dual packed(2)	Split/splitless (1)
Detector(max)*²	FID, TCD, BID, ECD, FPD, FTD, SCD (4)	FID, ECD, FPD	FID, TCD, ECD, FPD, FTD (4)	FID, TCD, ECD, FPD, FTD (4)	FID (1)
FID Sensitivity
Column Oven Temperature*⁴	Ambient+2℃ - Max 450℃	Ambient+4℃ - Max 450℃	Ambient+4℃ - Max 450℃	Ambient+10℃ - Max 400℃	Ambient+10℃ - Max 400℃
Oven Dimension (mm) /Volume (litters)	W280×H280×D175 /13.7	W250×H255×D150 /9.6	W280×H280×D175 /13.7	W250×H360×D175 /15.8	W250×H250×D90 /5.6
Oven Light		N/A	N/A	N/A	N/A
Dimension (mm)	W515×H440×D530	W350×H440×D620	W515×H440×D530	W400×H690×D607	W400×H420×D490
	Nexis GC-2030	Brevis GC-2050	GC-2010 Pro	GC-2014	GC-2025 (Discontinued)

*1: Standard or option may vary depending on the region
*2: Restriction on configuration
*3: Detector flow controller may not be electric
*4: Cooling option available

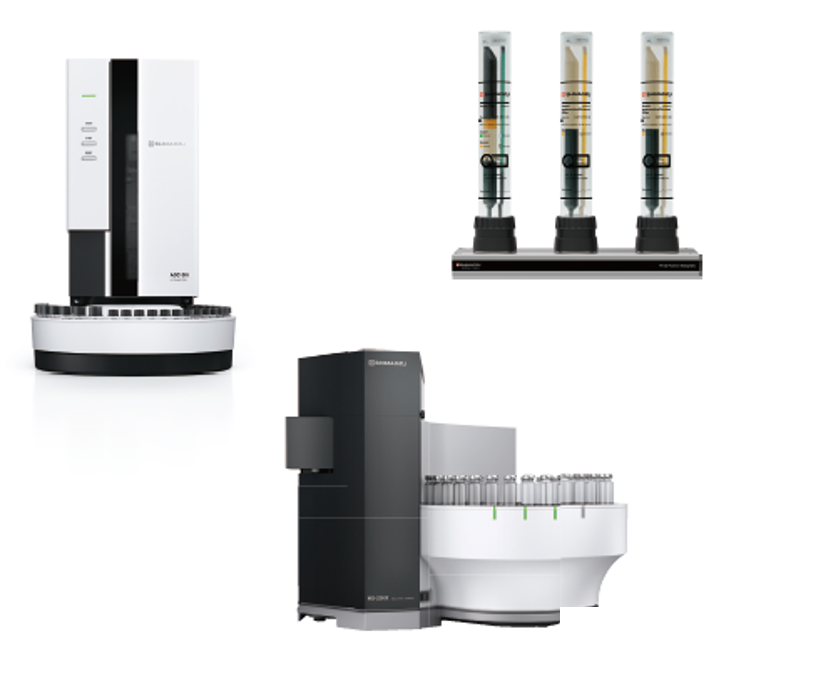

3. GC Components & Accessories Products

Gas chromatography requires various peripherals and supplies depending on the analytical purpose, especially as it relates to gas management, flow line configuration, column installation, sample injection and data processing.

Browse various accessories and supplies that support Shimadzu GC instruments below.
