1.5 ml Crimp Vials, Caps, Kits, Inserts

Add Bookmark

Glass Vials 1.5 ml Crimp Neck

Content: 100 pcs. / pack

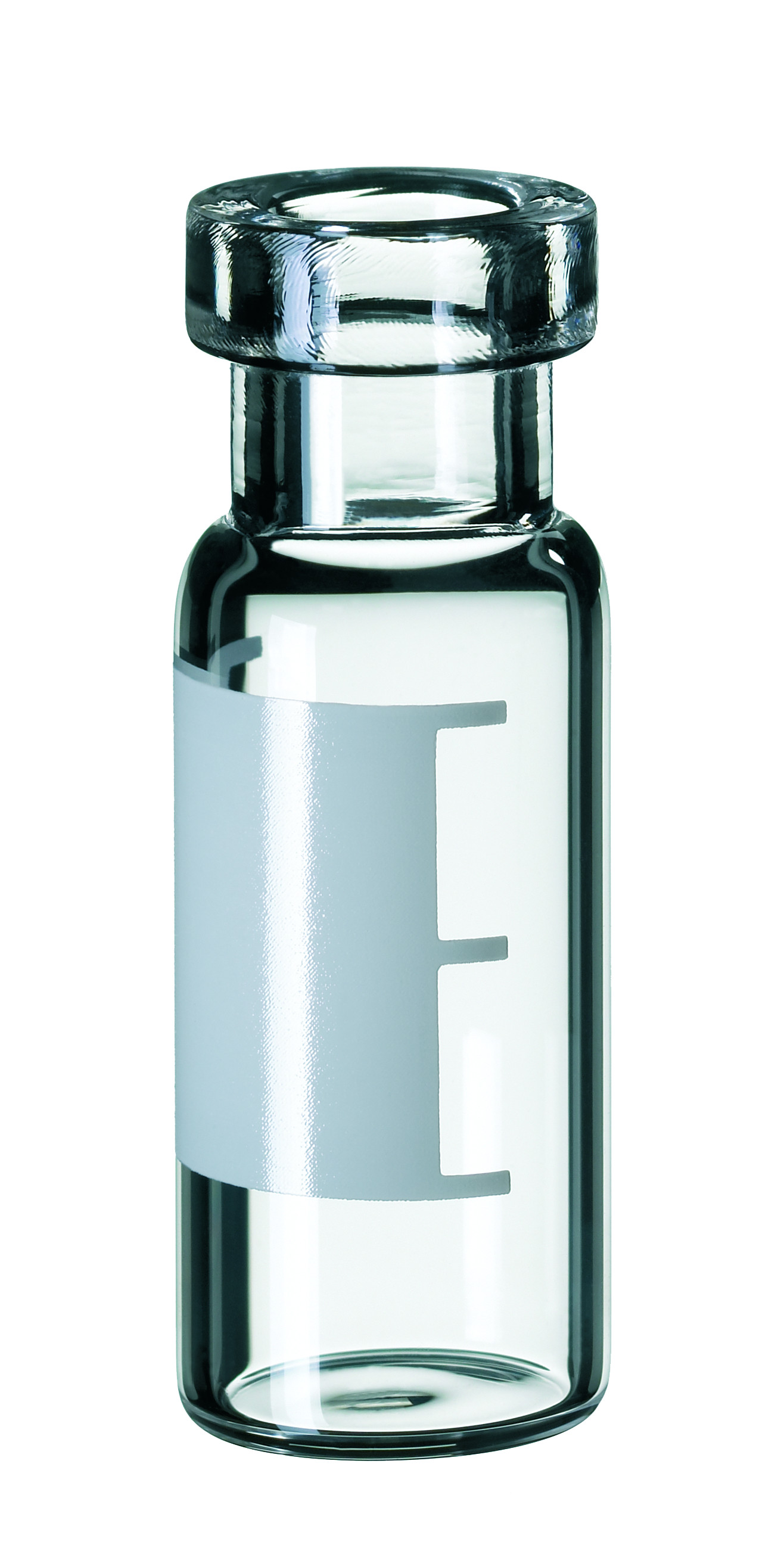

961-10020-23

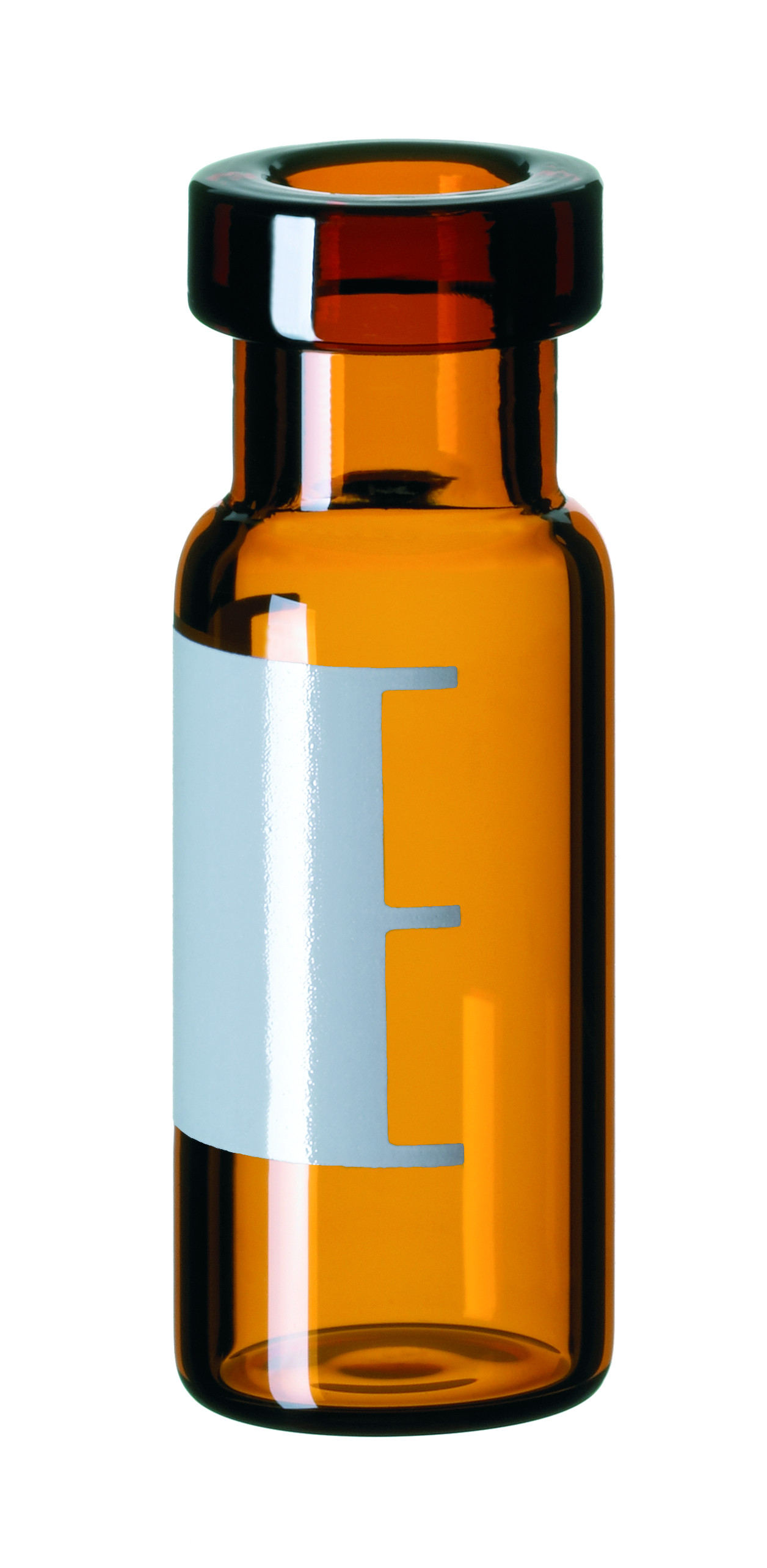

961-10020-24

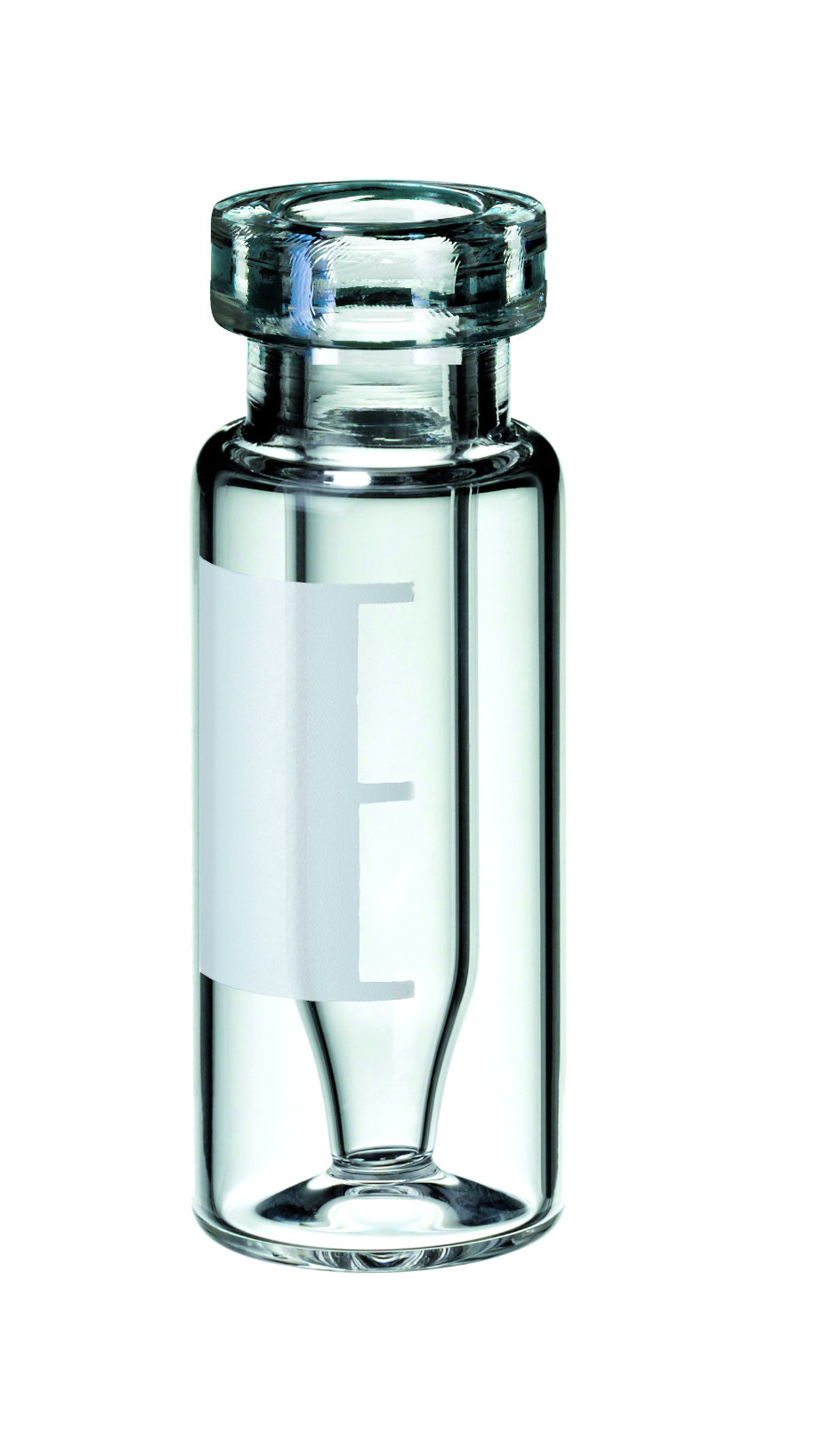

961-10020-22
P/N 961-10020-23 961-10020-24 961-10020-22
Volumen [ml] 1.5 1.5 0.3
Material, color glass, clear glass, amber glass, clear
micro insert
Neck crimp, wide open crimp, wide open crimp, wide open
Head O.D. [mm] 11 11 11
Bottom flat flat bottom bonded
Dimension [mm] 32.0 x 11.6 32.0 x 11.6 32.0 x 11.6
Marking Label and filling lines Label and filling lines Label and filling lines

Micro Inserts

Content: 100 pcs. / pack

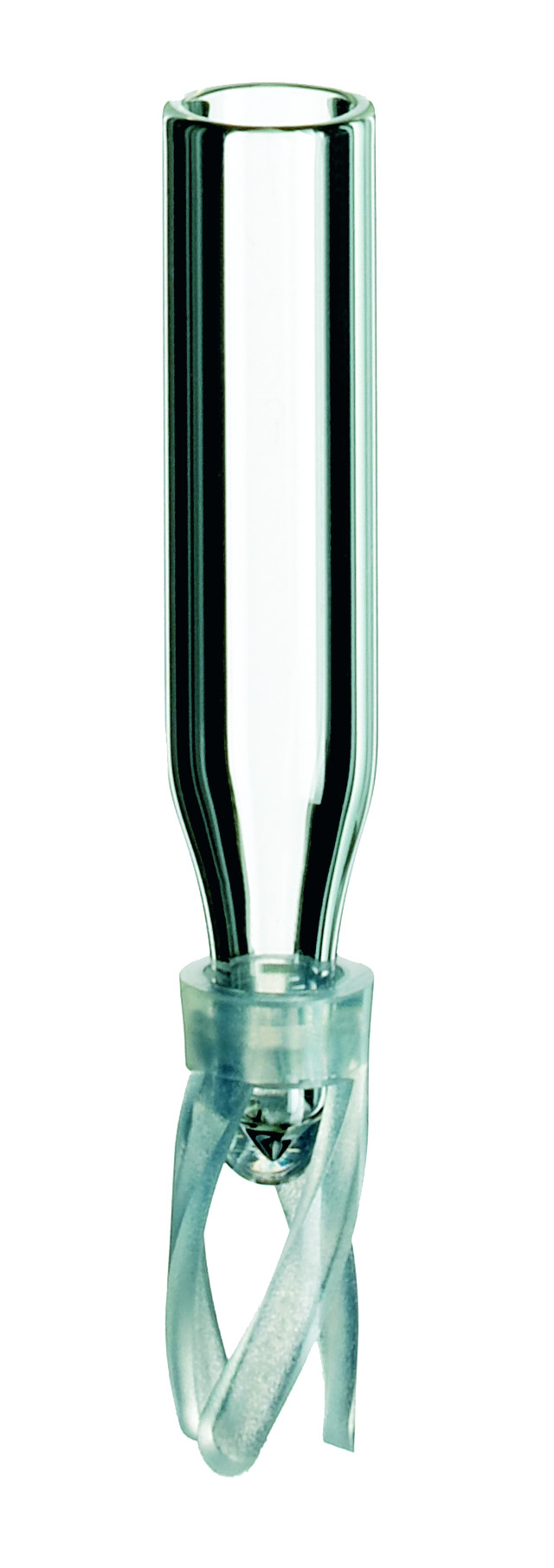

961-10020-28
961-10020-26

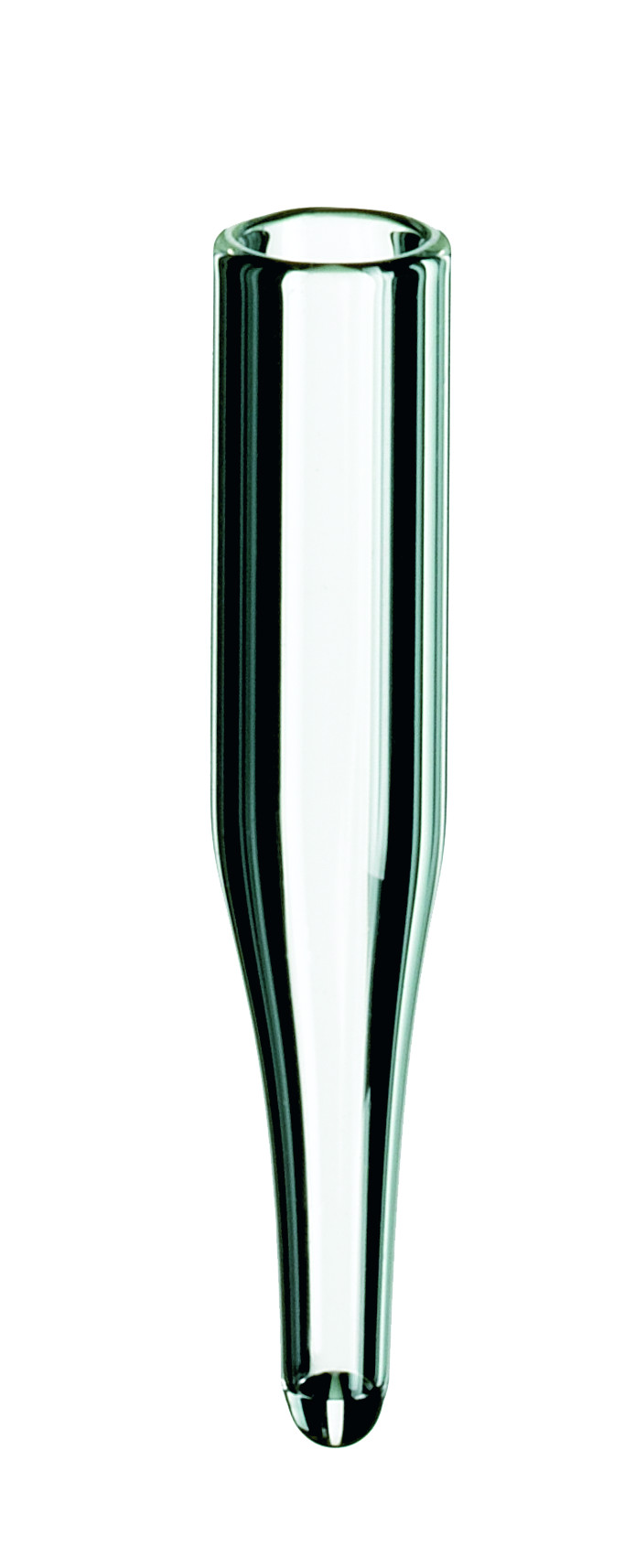

961-10020-27

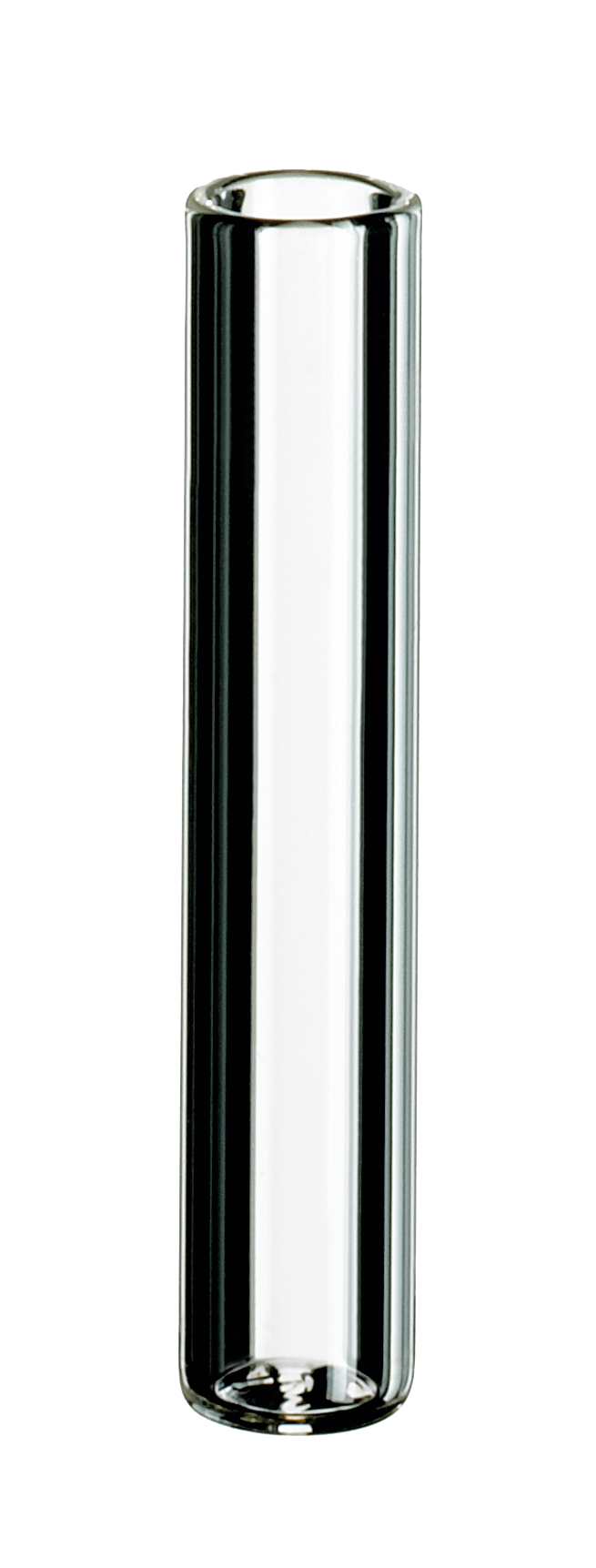

961-10020-12
P/N 961-10020-28 961-10020-26 961-10020-27 961-10020-12
Volumen [ml] 0.1 0.1 0.1 0.2
Material, color glass, clear glass, clear, silanized glass, clear glass, clear
Bottom assembled plastic spring assembled plastic spring ./. flat
Dimension [mm] 29.0 x 5.7 29.0 x 5.7 31.0 x 6.0 31.0 x 6.0

Crimp Caps for 1.5 ml Vials

Content: 100 pcs. / pack

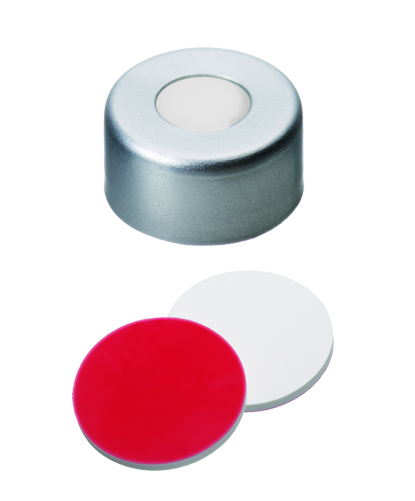

961-10030-11

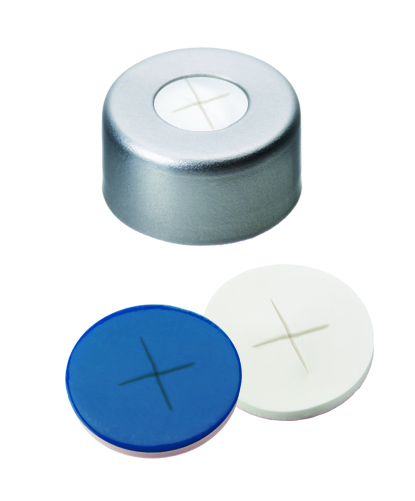

961-10030-12
961-10030-10

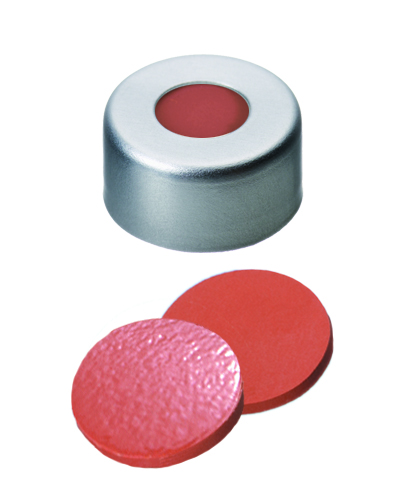

961-10030-09
1 2 3 4






Picture P/N Color Material Hole [mm] Thread [mm] Color Material Thickness [mm] Shore A
1 961-10030-11 silver aluminium,
lacquered		 5.5 11 white / red silicone/PTFE
UltraClean		 1.3 45°
2 961-10030-12 silver aluminium,
lacquered		 5.5 11 white / blue silicone/PTFE
with cross-slit		 1.5 55°

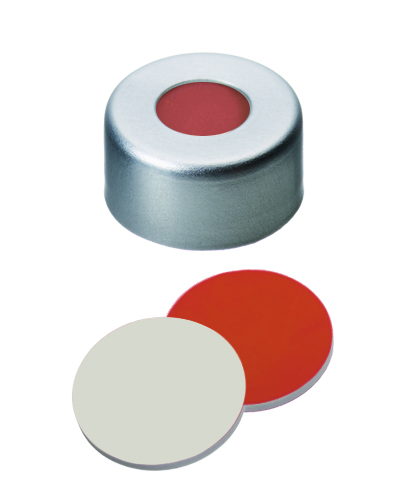

3 961-10030-10 silver aluminium,
lacquered		 5.5 11 red / beige rubber/PTFE 1.0 45°
4 961-10030-09 silver aluminium,
lacquered		 5.5 11 orange / transparent natural rubber/TEF 1.0 60°
